تفاصيل المنتج:
|
| مواد خام: | 1.5 ~ 2.5 مم (قوة عالية للصفيحة الرقيقة وقوة منخفضة للوح السميك) | الاستخدام: | لوحة الشاحنة |
|---|---|---|---|
| مبدأ العمل: | آلة تشكيل المتداول | التماس: | لحام |
| مادة الصلب: | Q235 أو غيرها | disoft: | آلة فك اللفافة أوتوماتيكية |
| قص: | القص الهيدروليكي أو القرص | طريقة التحكم: | نظام التحكم PLC |
| إبراز: | fully automatic truck body panel roll forming machine,external truck panel roll forming machine,batch production roll forming machine for side panels,external truck panel roll forming machine,batch production roll forming machine for side panels |
||

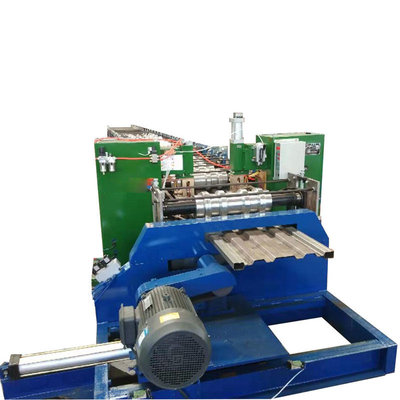

| NO. | Item Name | Model/Configuration | Qty | Power (KW) | Key Notes |
|---|---|---|---|---|---|
| 1 | Automatic Decoiler | 10T Capacity | 1 SET | - | Handles maximum 10t steel coils |
| 2 | Metal Embossing Machine | With Separated PLC | 1 SET | 7.5 | Independent PLC control |
| 3 | Servo Coil Feeder | - | 1 SET | 11 | Servo-driven for accurate feeding |
| 4 | Hydraulic Punching & Notch Machine | - | 1 SET | - | Uses SKD11 tooling for durability |
| 5 | Main Rolling Machine | Molding Frame + Gearbox System | 1 SET | 37 | Core forming component |
| 6 | Spot Welding Machine | Tracking Roller Structure | 1 SET | 200 | 2 sets of spot welders |
| 7 | Turkey System | - | 1 SET | - | Enhances panel flatness |
| 8 | Hydraulic Tracking Shearing System | - | 1 SET | 7.5 | Servo-tracking for precise cutting |
| 9 | Receiving Table | - | 1 SET | - | Collects finished panels |
| 10 | PLC Control System | Whole Line Control | 1 SET | - | Centralizes control for all processes |
